Workflows
Learn how to create, edit, and manage workflows effectively.
Create Workflow
Click + Workflow on the row of the project you want to add a workflow to.
Provide a label for your workflow. Optionally, add a description to explain its purpose.
Click Save to create the workflow.
Add Component
Click on the + icon to add a new component to the workflow.

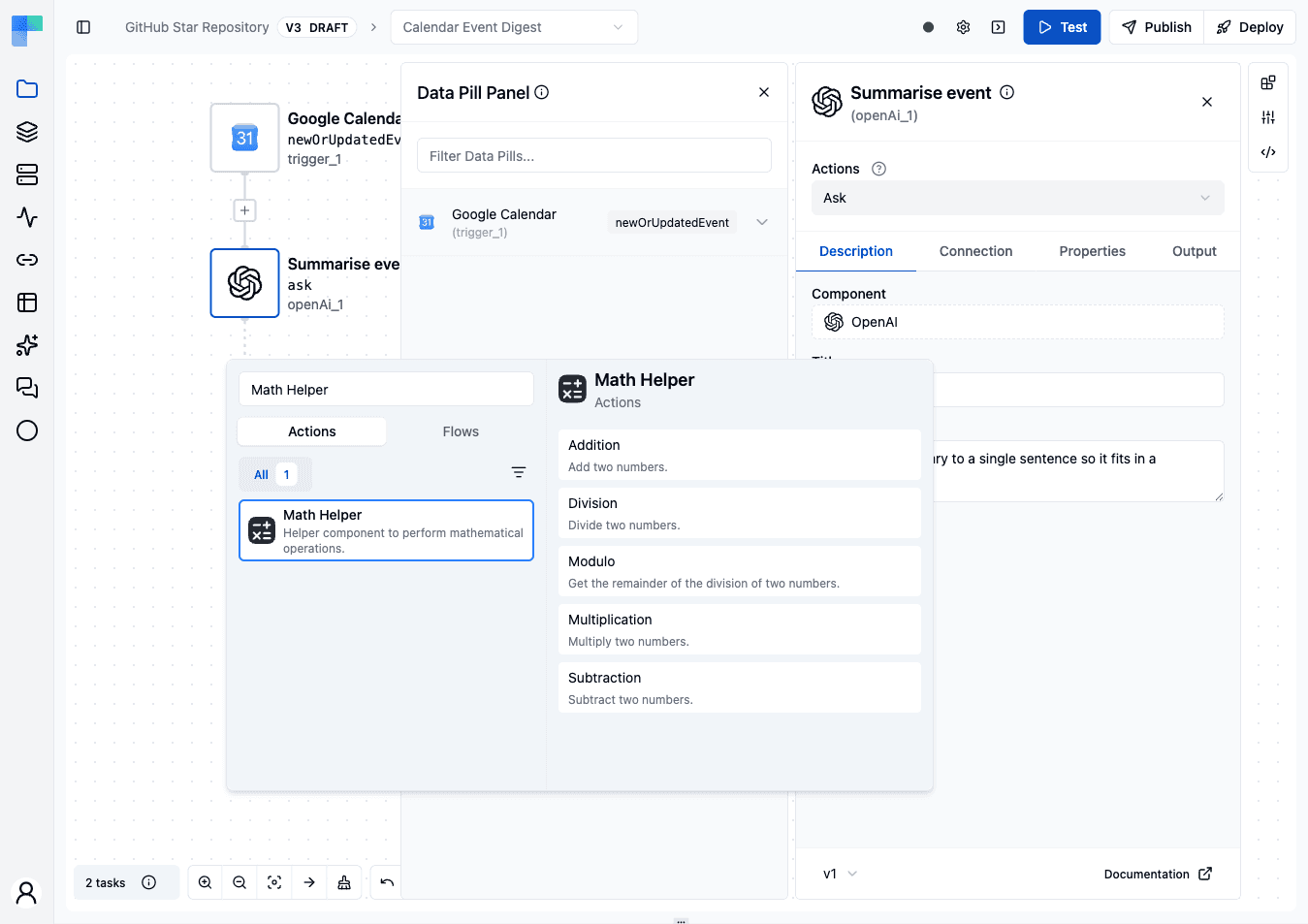

Find and select Math Helper component.
Select the Addition action from the list.
In the Properties tab, enter the numbers you want to add.
For First Number, input the first value (e.g., 2).
For Second Number, input the second value (e.g., 3).
Click Run.
In the lower panel, examine the input and output for the addition action to verify the results.
Use Data Pill
Click on the + icon to add a new component to the workflow.
Find and select OpenAI component.
Select the Ask action from the list.
Click on the OpenAI component to open its configuration panel.
In the Connection tab, click Create Connection.
Enter a connection name and paste the API Token from OpenAI.
Click Save.
Click on Choose Connection.
Select the connection you just created.
Go to the Properties tab.
For Model, choose the desired model (e.g., gpt-4).
Leave Format on Simple - the default, which asks for a prompt rather than a full message list.
For Prompt, enter the prompt text, such as Tell me something about this number:.
After clicking on the prompt field, the Data Pill Panel will open on the left. Use the data pill to insert output from a previous component.
Click on Math Helper component in Data Pill Panel.
Click on mathHelper_1, which is the output of the addition action for the Math Helper component.
Output of Math Helper component is now inserted into the prompt field. Click Run.
In the lower panel, review the input and output for each action in the workflow. Click on OpenAI.
Verify that the result of the addition action is correctly inserted in the prompt field.
Output
Each component in a workflow can be tested individually to verify its output. In the Configuration Panel, you can explore the output structure of an action through the Output tab.
Click on the component you want to test within your workflow.
Go to the Output tab to view the output of the component.
The output schema is displayed here, illustrating the structure of the output data. For example, the output of the Addition action is represented as a number, indicated by hashtag icons.
Note that the value 23.34 shown in the output schema is a placeholder and not the actual result of the action.

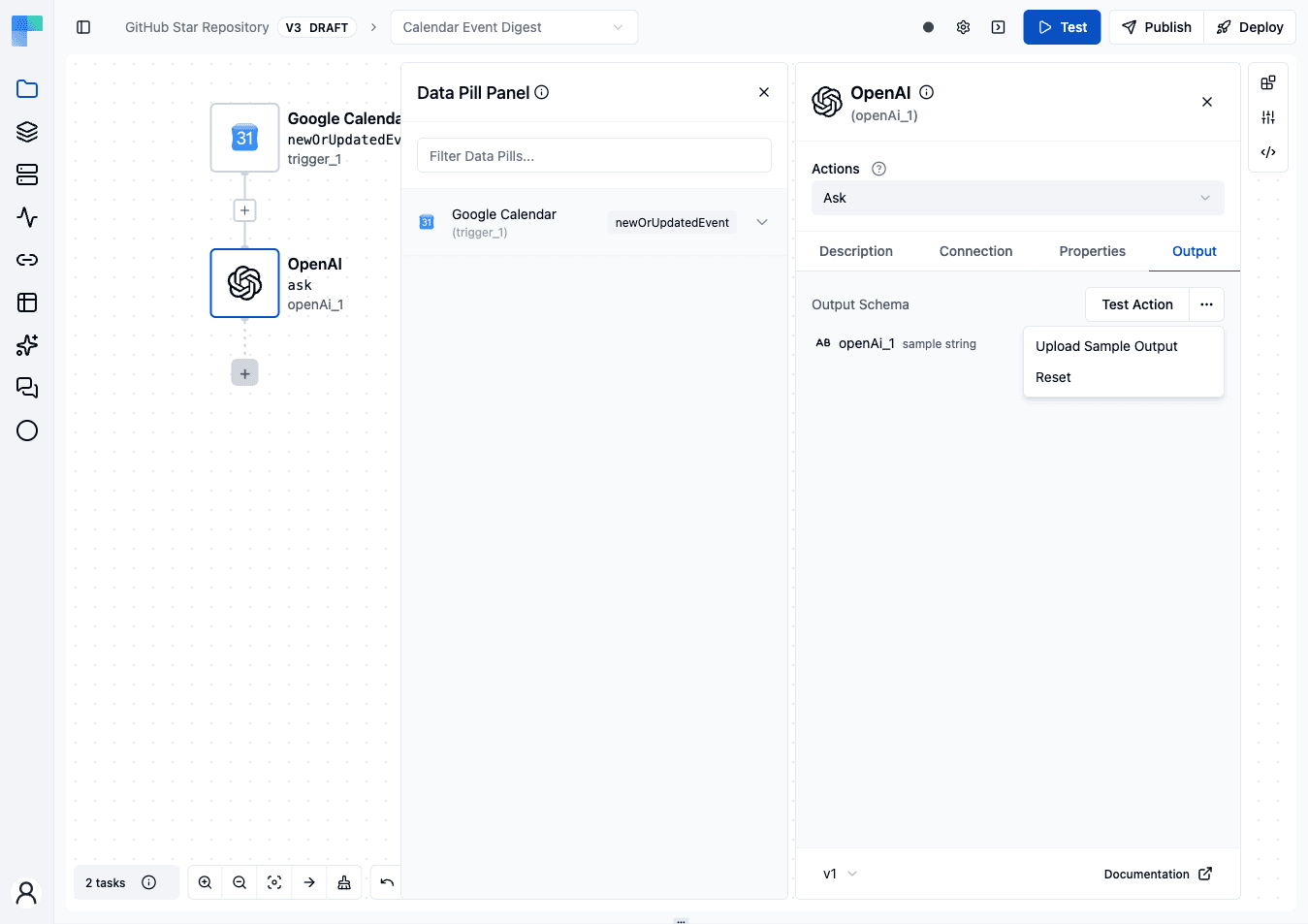

Use Test Action to run the action for real, or the … menu beside it for Upload Sample Output and Reset.
Test Action executes the action and shows its real output - in this case, 5.
Upload Sample Output lets you supply your own sample payload instead of running the action.
Reset returns the tab to the generated schema with sample values.
To summarize:
- Test Action: Executes the action and displays the real output.
- Upload Sample Output Data: Allows you to upload your own sample output data.
- Reset: Displays the structure of the output data with sample values.
Note: Some components does not have predefined output schema because their output is dynamic. In that case you have to test the component to see the output.
Add Trigger
Hover the trigger node, open its ⋮ Node actions menu, and choose Replace.
Search for and select Schedule.
Select Cron.
Click on "Properties".
Enter "* * ? * *" as the expression.
Select your timezone.
After picking Schedule → Cron, set the expression and timezone on the Properties tab.
Multiple triggers
Coming soon. Multiple triggers per workflow are on the upcoming release track and are not yet available in the latest released version of ByteChef.
A workflow can have more than one trigger - for example, run on a schedule and on an incoming webhook. Use the add-trigger button next to the existing trigger to attach another one; on deployment every trigger is enabled, and any of them can start a run of the same workflow.
Edit Component
Click on the component you want to edit.
Change title and add some notes.
Stream data in bulk
For moving large volumes of records between systems (bulk sync, export, migration), use a Data Stream node (coming soon) instead of looping over single-record actions.
Canvas Layout
The editor arranges your nodes automatically in a tidy top-down flow as you build. You can still drag any node to a custom position - those positions are saved with the workflow.
To discard your manual positions and snap everything back to the automatic layout, click the Reset layout button (the broom icon) in the canvas toolbar. To reset a single node instead, open that node's menu and choose Reset position (shown only when the node has been moved).
Add Sticky Notes
Coming soon. Sticky notes are on the upcoming release track and are not yet available in the latest released version of ByteChef.
Sticky notes let you annotate the workflow canvas - describe what a section does, leave review comments, or link a walkthrough video. They are documentation only and are never executed.
Click the sticky note icon (Add note) in the editor toolbar. A note appears on the canvas.
Double-click the note to edit its text - Markdown is supported, and pasted YouTube links render as embedded videos.
Drag the note anywhere on the canvas and resize it from its edges.
Use the note's color swatches to pick a preset color, or choose a custom one; recently used custom colors are remembered.
Sticky notes are saved with the workflow, so everyone who opens it sees the same annotations.
Canvas Controls
A toolbar in the corner of the canvas gives you control over how the workflow is laid out and viewed. None of these controls change what the workflow does - they only affect the editing view.
| Control | What it does |
|---|---|
| Zoom in / Zoom out | Scale the canvas up or down. |
| Fit to screen | Frame the whole workflow in the viewport. |
| Switch to horizontal / vertical layout | Flip the auto-layout direction; the choice is remembered per workflow. |
| Reset layout | Re-run auto-layout to tidy the nodes back into place. |
| Undo / Redo | Step backward or forward through your recent edits. |
Coming soon. Three further toolbar controls are on the upcoming release track and are not yet available in the latest released version of ByteChef: Switch layout engine (toggle between the standard and the experimental layout engine), Lock / Unlock node movement (prevent, or re-allow, dragging nodes), and Add note (drop a sticky note on the canvas).

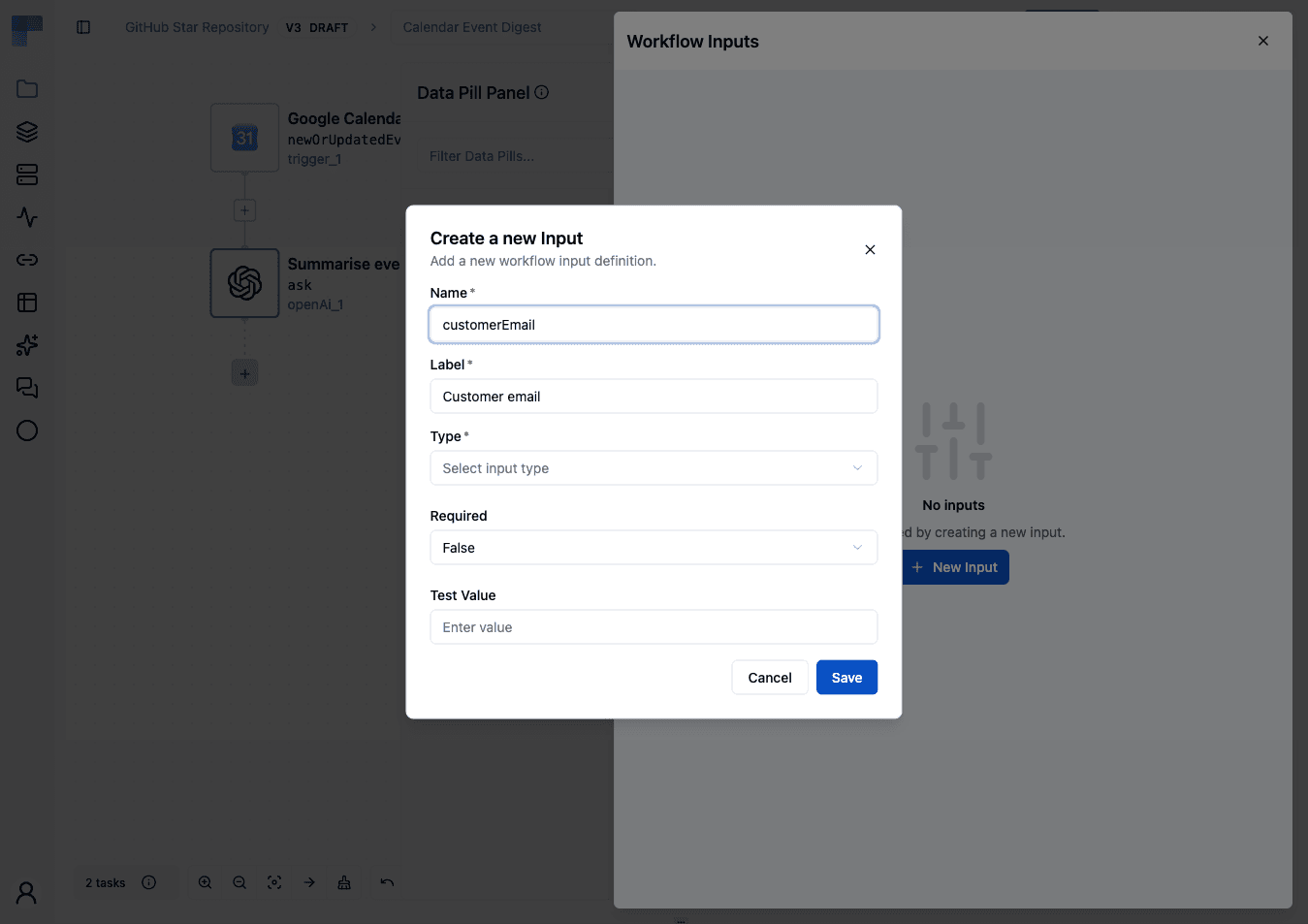

Workflow Inputs
Workflow inputs are values supplied to a run from the outside - a caller's parameters, a deployment configuration, or a test value you enter in the editor. Open the Workflow Inputs panel from the right sidebar to define them.
In the workflow editor, click the Workflow Inputs icon in the right sidebar.
Click + to add an input, then set its fields: - Type - one of Boolean, Date, Date Time, Integer, Number, String, or Time. (Two further types, Field Mapping and Component property, are on the upcoming release track and are not yet available in the latest released version of ByteChef.) - Name - the key used to reference the input as a dynamic value. - Label - the human-readable label shown when the input is filled in. - Required - whether a value must be provided. - Test Value - a value used only when you run the workflow in the editor's test mode.
Use the row actions to edit or delete an existing input.
Defined inputs are available downstream as data pills under the workflow's inputs.
Workflow Outputs
Workflow outputs declare what the workflow returns to its caller. Open the Workflow Outputs panel from the right sidebar.
In the workflow editor, click the Workflow Outputs icon in the right sidebar.
The panel lists each output as a Name / Value row.
Click + to add an output, then set its Name and Value. The value is built with data pills or a formula expression, so an output can reference the result of any earlier step.
Use the row actions to edit or delete an existing output.
Edit Workflow
Click on the settings icon in the top right corner.
Choose Edit from the dropdown menu.
Change the workflow name or description as needed.
Click Save to apply your changes.

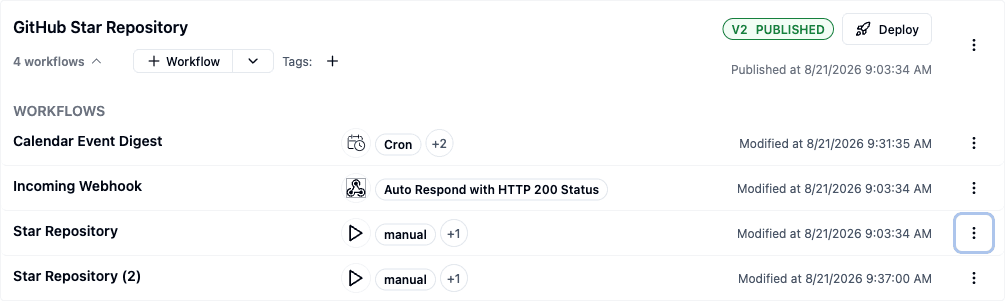

Duplicate Workflow
Click on the settings icon in the top right corner.
Choose Duplicate from the dropdown menu.
Export Workflow
Click on the settings icon in the top right corner.
Choose Export from the dropdown menu to download the workflow JSON file.
Publish Workflow
Click on Publish.
Enter description of the published project.
Click on Publish.
Editor Header Controls
The project editor's header, next to Publish, carries the rest of the run/deploy loop for the project you're currently editing.
Deploy
Deploy opens the same Create Deployment dialog used from the Project Deployments page, pre-scoped to the current project. It's disabled - with a "Publish the project to enable deployment" tooltip - until the project has at least one published version, since a deployment always targets a published version, never a draft. Its New tab creates a fresh deployment (Environment, Version, Name, Description, Tags); its Change Version tab repoints an existing deployment at a different published version.
Run, Test, and the Output panel
The header's Test button runs the current workflow from its trigger and streams the run's progress and result into the Output panel at the bottom of the editor; while a run is in-flight, the button turns into a Stop button that cancels it. If the workflow's trigger is a chat trigger, the same button is labeled Chat instead - clicking it opens the test chat panel rather than starting a run immediately, and you drive the run by sending it messages.
The icon button beside Test/Chat (tooltip: "Show the current workflow test execution output") toggles the Output panel open or closed on its own, so you can revisit the last run's result without triggering a new one.

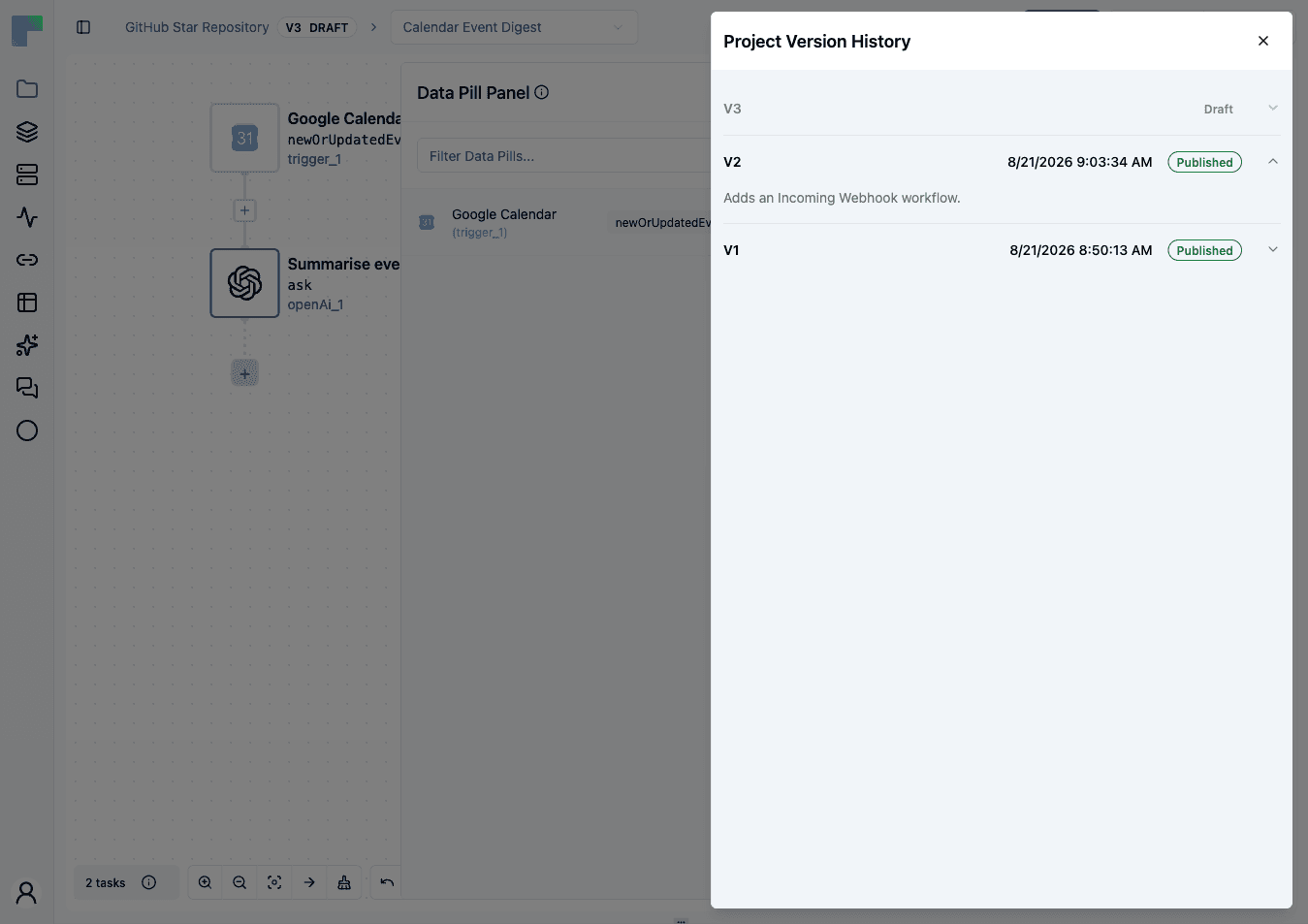

Project History
The settings menu's Project tab has a Project History entry that opens a side sheet listing every version of the project - version number, publish date, a Published/Draft badge, and the version's description. It's the project-scoped, always-available counterpart to the environment-pinning story covered in Deploying workflows: Project History shows every version regardless of which environment, if any, currently has it pinned.
Test with Chat
For a chat-triggered workflow, the test chat panel lets you exchange messages with the workflow the same way an end user would through a deployed chat - type a message, send it, and the reply streams into the same thread as the run executes.
Delete Workflow
Click on the settings icon in the top right corner.
Choose Delete from the dropdown menu.
Click Delete.
Code Editor
Every workflow is represented as a JSON file, allowing you to edit it using the code editor. Changes made in the code editor are reflected in the UI and vice versa. This feature is particularly useful for resolving UI issues or making bulk changes to the workflow.

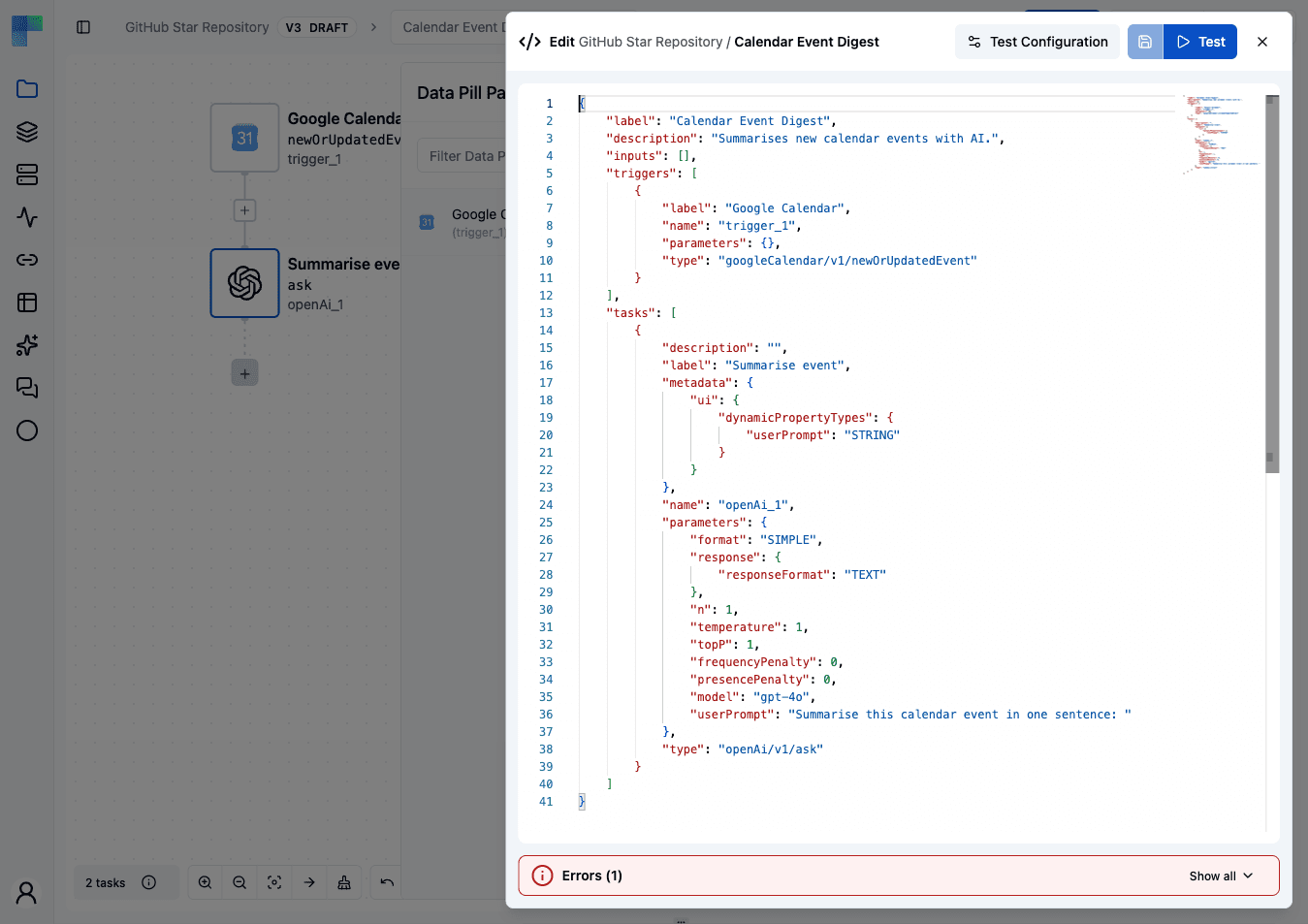

Access the Code Editor
Click on the code icon in the right panel.
The code editor will open, displaying the JSON representation of the workflow. Review this structure to understand how the workflow is organized.
Add Component
Adding components to your workflow allows you to extend its functionality and tailor it to your specific needs. Each component comes with detailed documentation that guides you through its features and actions. By following these steps, you can seamlessly integrate new components into your workflow.
Go to the Component Reference page.
Search for the component you want to add. For this example, we'll add the Random Helper component.
Click on the Random Helper component to view its documentation.
In the Actions section, find the list of available actions. We'll choose the Random Integer action.
Let's write code to add the Random Integer action to the workflow.
Under the tasks key, add a new object for the Random Integer action.
Enter the label for the UI display, e.g., Generate Integer.
Set the name as the action key, e.g., generatedInt.
Under parameters, specify the required properties. Here, we need startInclusive and endInclusive to generate a random integer between two numbers. Set startInclusive to 1 and endInclusive to 100.
Add the type for this task: randomHelper/v1/randomInt. The randomHelper/v1 is the component type, and randomInt is the action name.
This part of code will look like this:
{
"label": "Generate Integer",
"name": "generatedInt",
"parameters": {
"startInclusive": 1,
"endInclusive": 100
},
"type": "randomHelper/v1/randomInt"
}Click on save icon to add the component to your workflow.
